High temperature resistant PVC-U solid wall cable protection tube, external pressure resistant…

Product Description

The information below is based on the original product material. Available dimensions, performance grades and applicable standards can vary by model and project. Request the current datasheet and confirm the final specification before ordering.

1. Product Overview

PVC-U communication cable protection tube: PVC-U communication cable protection tube is a communication pipe made of hard polyvinyl chloride (PVC-U) as the masterbatch, adding anti-impact agent, stabilizer and other auxiliary materials through a unique process. This kind of pipe has a smooth inner wall and can directly pass through optical cables, which can save man-hours. It has a reasonable structure, high use value and long life.

It is mainly used in industries such as China Mobile, China Railway Communications, China Unicom, China Netcom, radio and television, and electric power. It complies with the communications industry standard of the People's Republic of China: YDT841.2-2016 standard. It has the characteristics of light weight, corrosion resistance, insulation and flame retardant, and convenient construction. It is widely used in telecommunications, radio and television, network cabling,

Communication line protection in smart buildings and other fields.

2. Product core advantages

1. Porous structure & high compatibility

- Single-hole and multi-hole (2-hole/4-hole/6-hole/honeycomb hole) designs are optional, with separation ribs between holes to avoid cable cross-interference.

- The inner wall is smooth and the friction coefficient is low, which is convenient for cable threading and later expansion and maintenance.

2. Excellent physical properties

- Strong compression resistance: ring stiffness ≥8kN/m² (higher grades can be customized), resistant to soil load and mechanical impact.

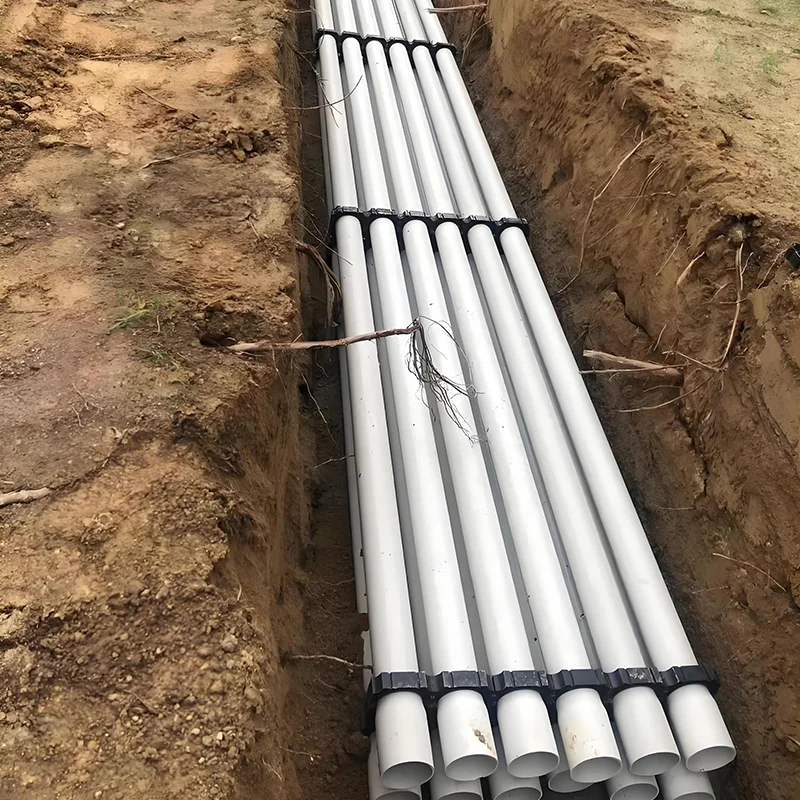

- Corrosion resistance: Resistant to acid, alkali and salt spray, suitable for direct underground burial and humid environment, with a lifespan of up to 50 years.

3. Security protection

- Insulation and flame retardant: complies with YDT841.2-2016 standard, flame retardant grade V-0, self-extinguishing when removed from fire, ensuring communication safety.

- Anti-rodent: Optional corrugated outer wall or anti-rodent design can prevent animals from chewing and damaging the cables.

4. Convenient & low cost construction

- Light weight (density 1.4-1.5g/cm³), labor-saving transportation and installation; supports socket, glue or sleeve connection.

- No grounding is required, the overall cost is lower than that of metal pipes, and the construction period is shortened by more than 30%.

5. Environmentally friendly and durable

- Anti-UV (optional UV stabilizer formula), no aging when used outdoors; the material is recyclable and complies with RoHS standards.

3. Typical application scenarios

- Communication network: telecommunications optical fiber, 5G base station cables, broadband home pipes

- Municipal engineering: urban low-voltage telecom pipe network, road embedded communication pipelines

- Intelligent buildings: building integrated wiring, security monitoring cable protection

- Special environment: protection of communication facilities along bridges, tunnels and high-speed railways
