Street light threading, wind power generation, communication wire and cable tube, PE street…

Product Description

The information below is based on the original product material. Available dimensions, performance grades and applicable standards can vary by model and project. Request the current datasheet and confirm the final specification before ordering.

1. Product introduction

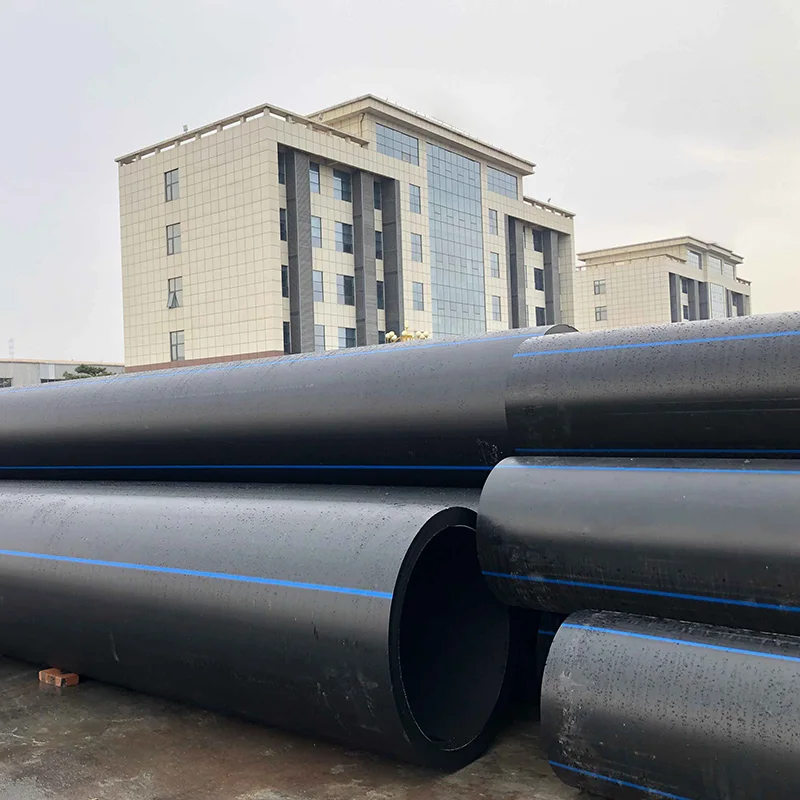

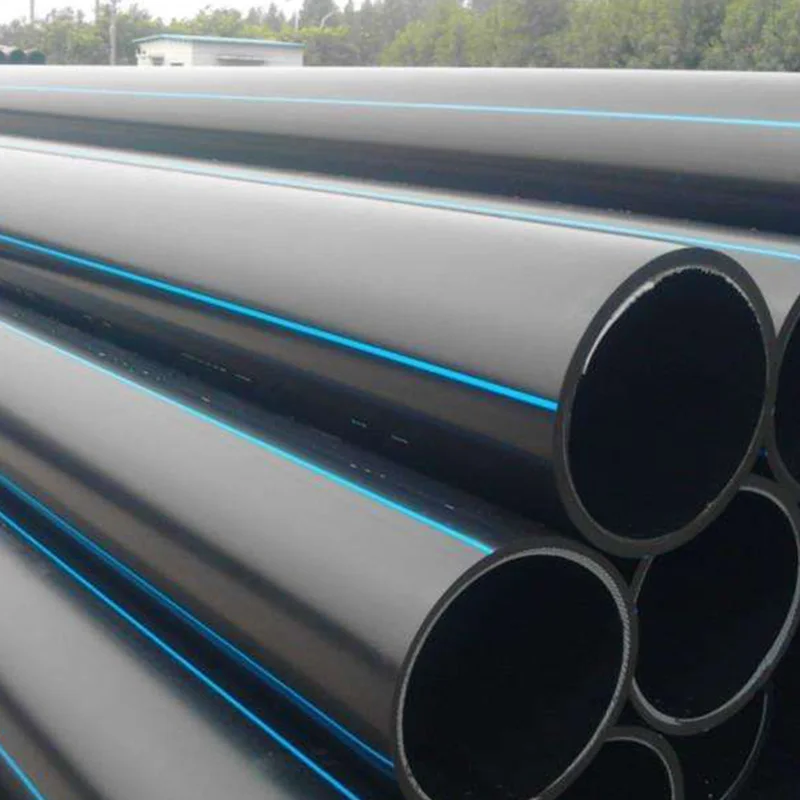

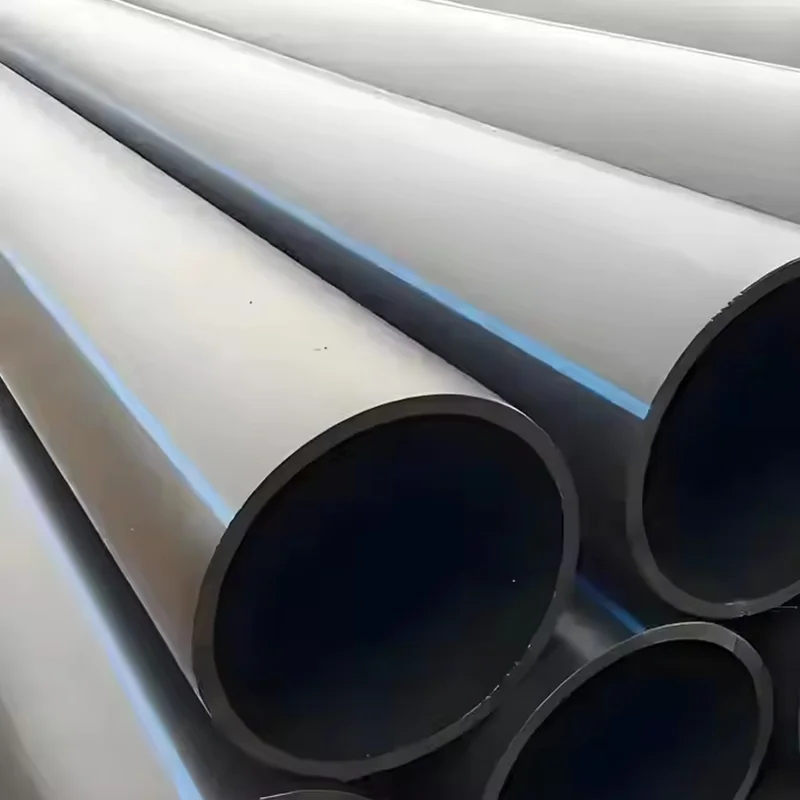

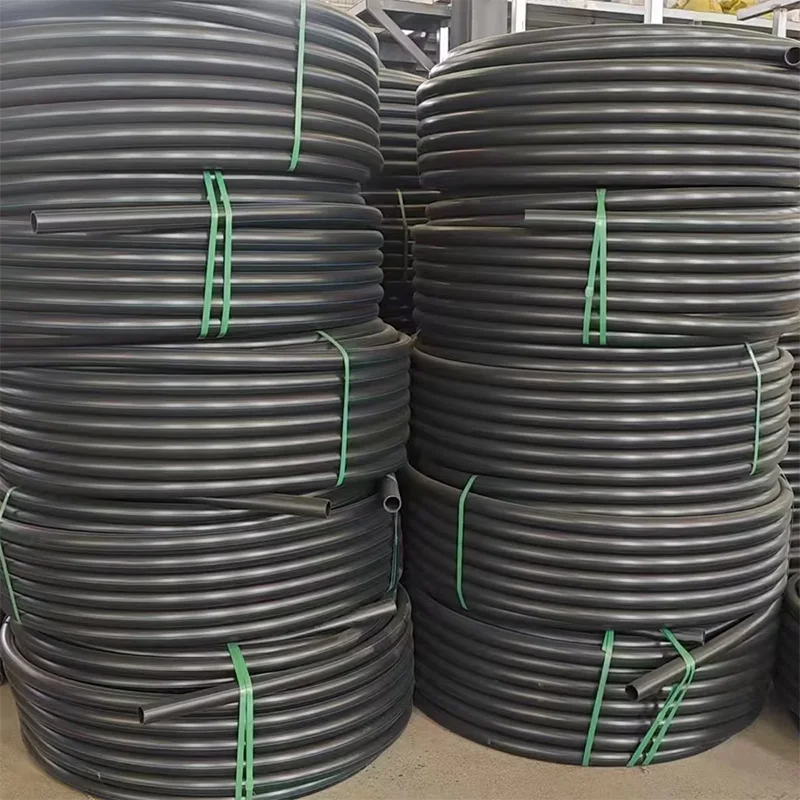

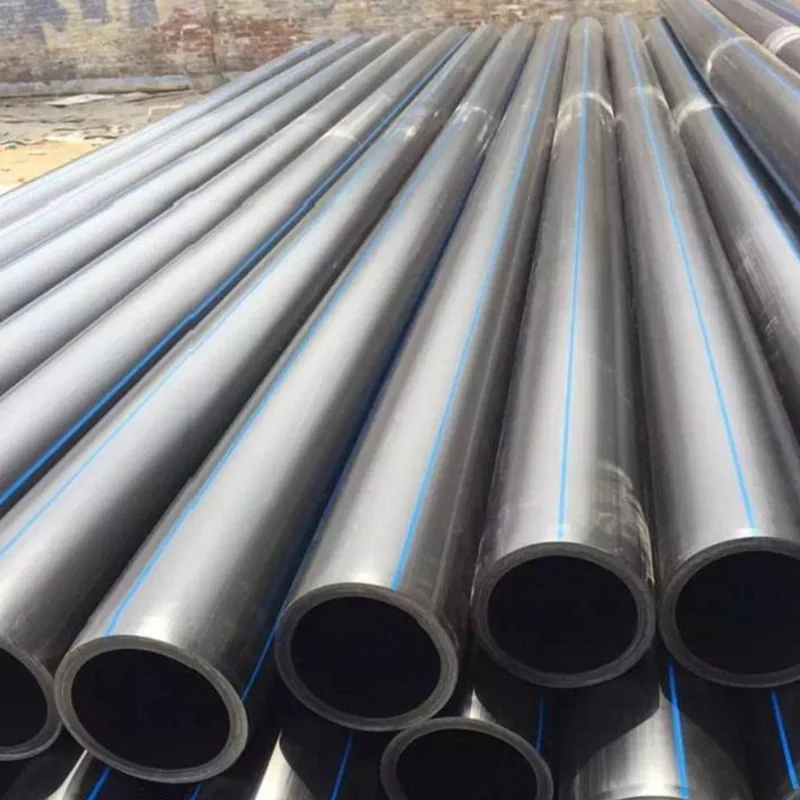

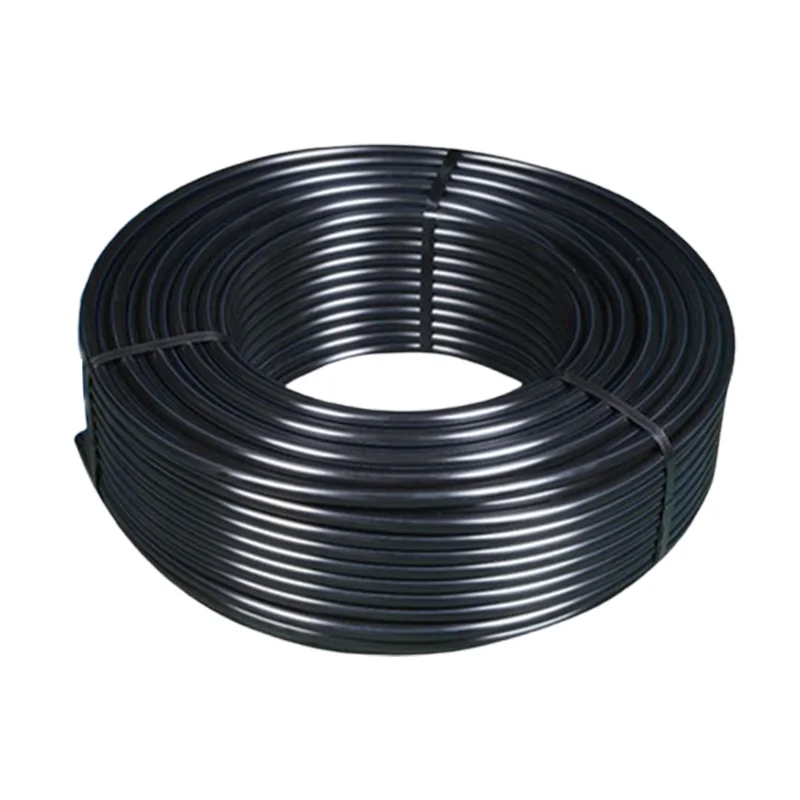

PE power cable protection tube: Polyethylene (PE) is used as a masterbatch, and anti-impact agents, stabilizers and other auxiliary materials are added through high-speed extrusion. The new power cable protection tube is a flexible material with an elongation at break of more than 350%. The pipe has strong impact resistance and external pressure resistance.

The foundation will not break even if there is slight uneven settlement. It has strong recovery ability after deformation and has good adaptability to any foundation. It can be widely used in urban and rural trenchless horizontal directional drilling power pipe projects, municipal drainage and lighting excavation of power pipes.

The project implements the communications industry standard of the People's Republic of China: YD/T841.2-2016 standard.

2. Product features

1. Excellent physical properties

High strength: high ring stiffness, good compression and impact resistance, and can be adapted to buried or trenchless construction.

Good flexibility: bendable, adaptable to terrain changes, excellent seismic resistance, not easy to break.

2. Corrosion resistance & long life

Resistant to acid, alkali and chemical corrosion, it is suitable for high salt spray environments such as chemical industry areas and coastal areas.

Anti-aging, with a service life of 30 to 50 years, much higher than PVC pipes and galvanized steel pipes.

3. Insulation & moisture-proof

Excellent electrical insulation properties prevent cables from being interfered by external currents and ensure the safety of power transmission.

The inner wall is smooth and the friction coefficient is low, making it easy to thread cables without water accumulation or scaling.

4. Outstanding low temperature resistance

Working temperature range: -40°C ~ 60°C, suitable for cold areas (such as northern permafrost zones).

5. Convenient construction & environmentally friendly

Light weight, only 1/8 of steel pipe, easy to transport and install.

Various connection methods: hot-melt butt connection, electric fusion connection, socket connection, good sealing.

100% recyclable, meets environmental protection requirements, and is pollution-free.

3. Application fields

1. Electric power engineering

Urban power grid reconstruction, substation cable laying, 10kV~35kV power cable protection, street lights, traffic signals and other low-voltage cable protection

2. Communication engineering

Optical fiber communication pipeline, 5G base station, data center cable protection

3. Municipal engineering

Underground utility tunnel, road, bridge, tunnel cable protection

4. Special environment

Chemical industrial parks, coastal high salt spray areas, frozen soil, wetlands and other complex geological conditions

4. Installation and maintenance

1. Installation method

Hot melt butt joint (recommended): suitable for large diameter pipes, with high joint strength and good sealing.

Electrofusion connection: suitable for small diameters or complex environments, with a high degree of automation.

Socket connection: suitable for low-voltage cables or temporary projects, fast installation.

2. Construction precautions

The trench must be smooth to avoid damage to the pipe by sharp stones.

When backfilling, compact it in layers to prevent the pipeline from deforming under pressure.

When constructing in low temperature environments, attention should be paid to changes in material flexibility.

3. Maintenance requirements

Basically maintenance-free, just check the interface sealing regularly.

If damaged by external force, it can be partially replaced and the maintenance cost is low.
